Types of lifting equipment

Lifting machinery plays a crucial role in construction, logistics, agriculture, and industrial applications. These machines are designed to lift, move, and position materials efficiently and safely.

Cranes

Cranes are heavy-duty lifting machines used in construction, shipbuilding, and industrial settings. They can handle large loads and have various designs for different applications.

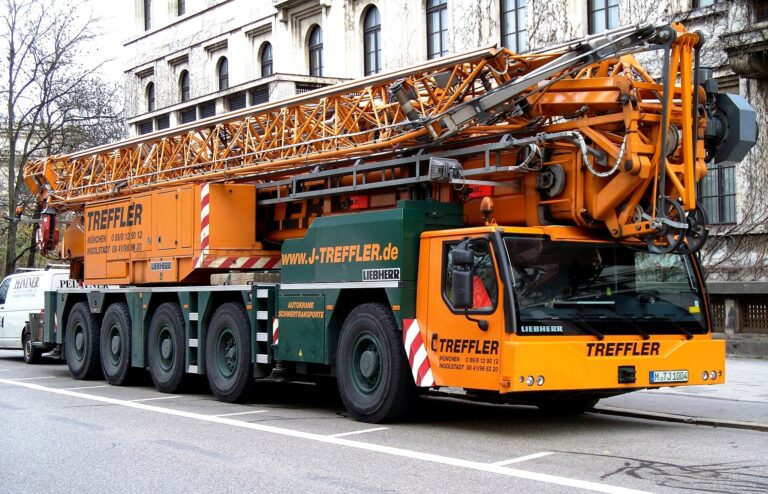

  • Mobile Cranes – Truck-mounted, all-terrain, and rough-terrain cranes.

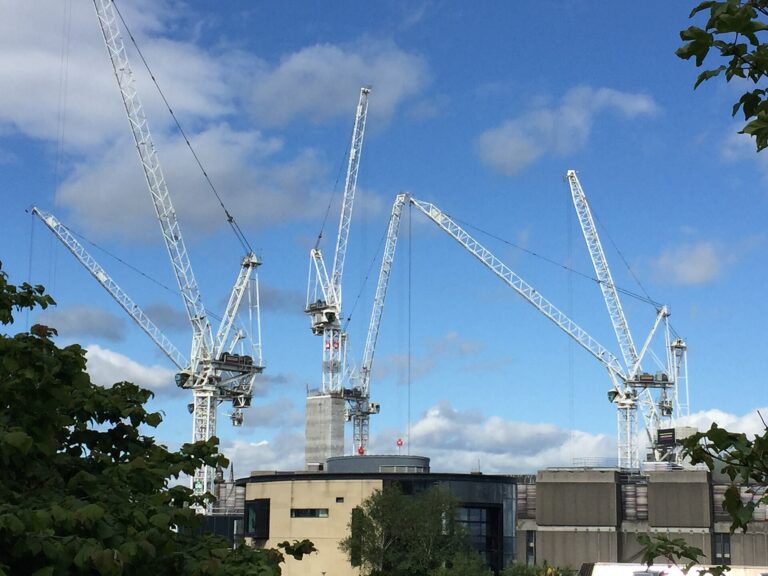

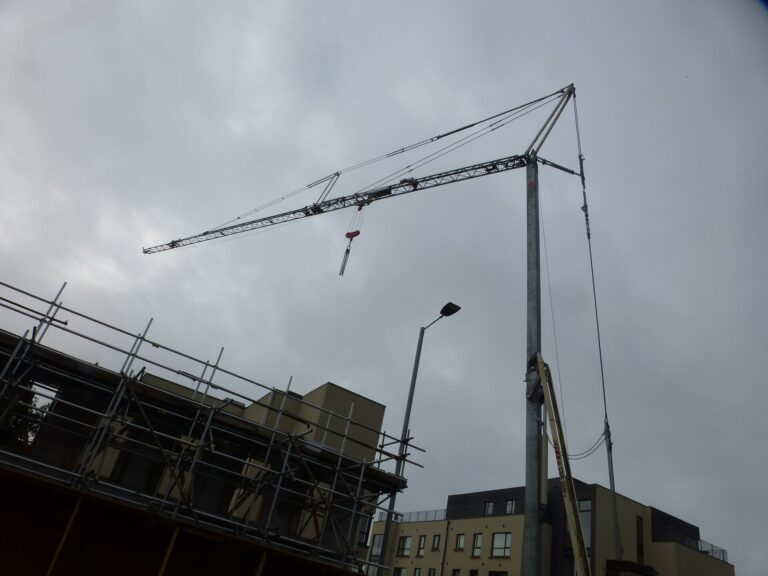

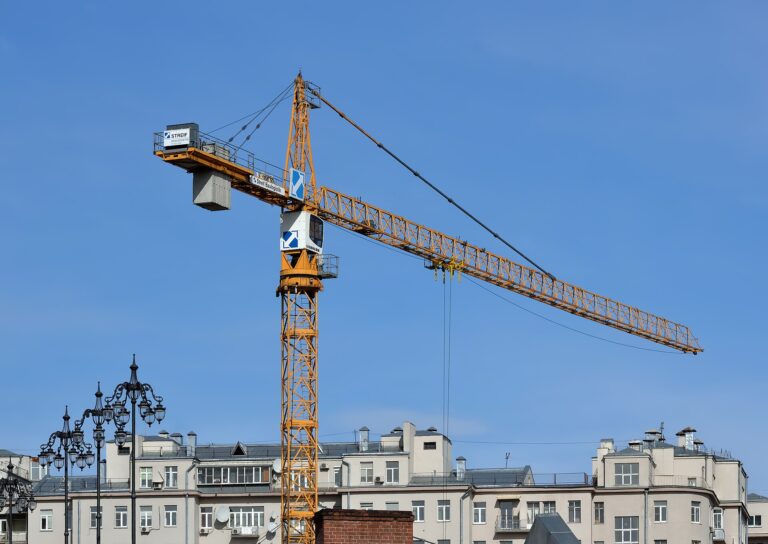

  • Tower Cranes – Used in high-rise construction projects.

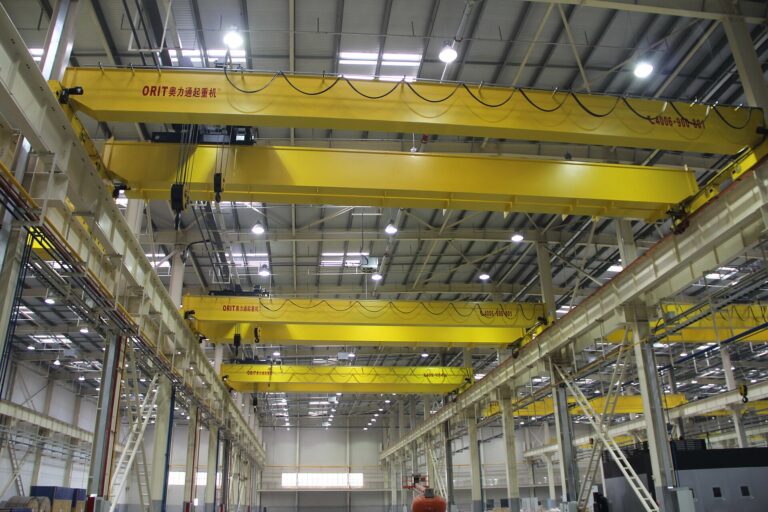

  • Overhead Cranes – Bridge and gantry cranes for industrial use.
  • Telescopic Cranes – Feature an extendable boom for versatile reach.

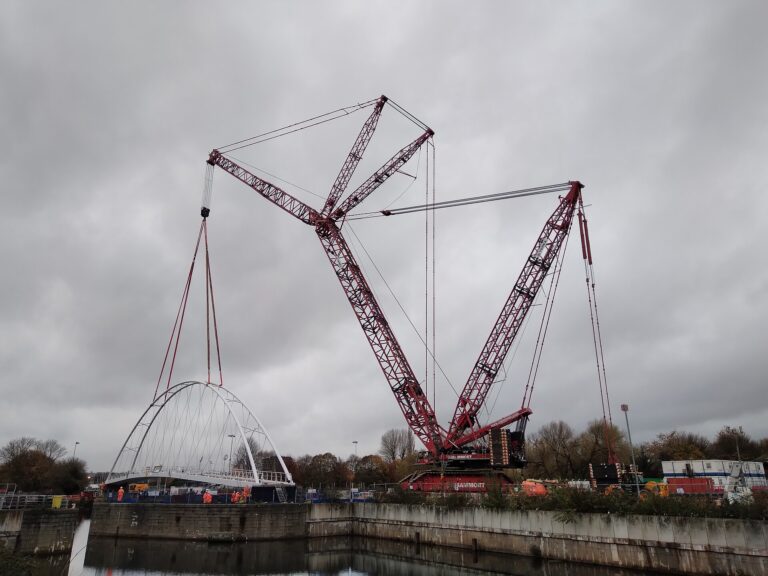

  • Crawler Cranes – Tracked cranes for stability on rough terrain.
  • Floating Cranes – Used in maritime operations.
  • Jib Cranes – Smaller, fixed-base cranes for workshops.

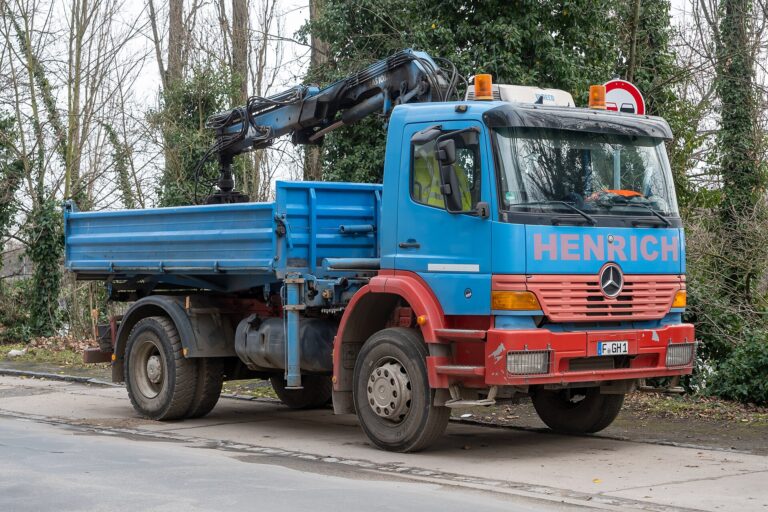

  • Loader Cranes – Also known as knuckle boom cranes, mounted on trucks.
  • Railroad Cranes – Specialized cranes for railway maintenance.

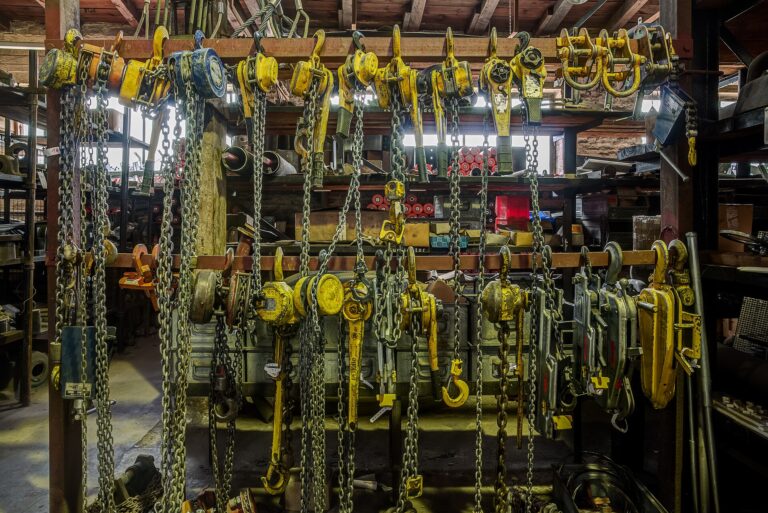

Hoists

Hoists are lifting devices that use chains or ropes to raise and lower loads, typically in warehouses and construction sites.

  • Chain Hoists – Available in manual and electric versions.
  • Wire Rope Hoists – Used for heavier loads and industrial settings.
  • Pneumatic Hoists – Powered by air pressure for hazardous environments.
  • Winches – Used for pulling or lifting heavy objects with a cable or rope.

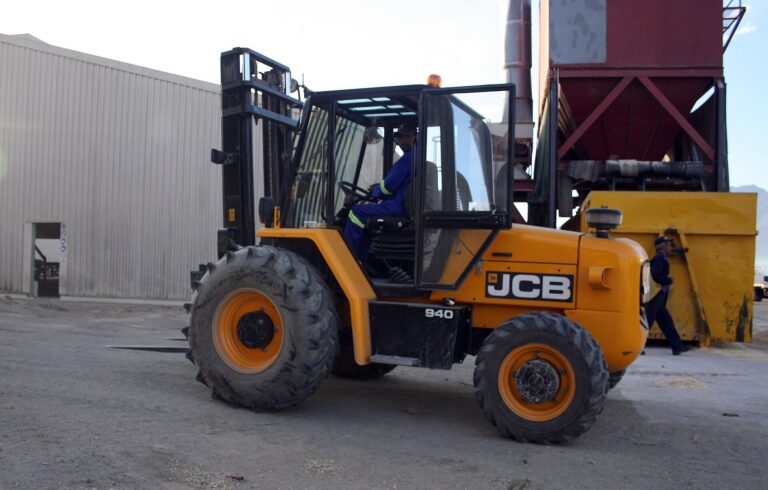

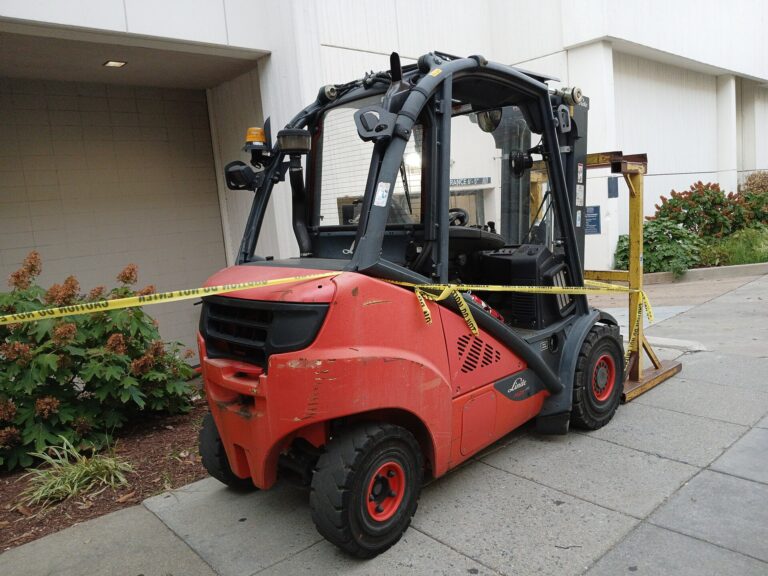

Forklifts & Industrial Lift Trucks

Forklifts are essential for material handling in warehouses and construction sites.

  • Counterbalance Forklifts – Standard forklifts with a counterweight.
  • Reach Trucks – Designed for narrow aisles and high shelves.
  • Pallet Jacks – Manual and electric versions for moving pallets.
  • Order Pickers – Used for picking inventory in warehouses.
  • Telehandlers – Equipped with a telescopic boom for extended reach.
  • Side Loaders – Suitable for handling long materials like pipes and timber.

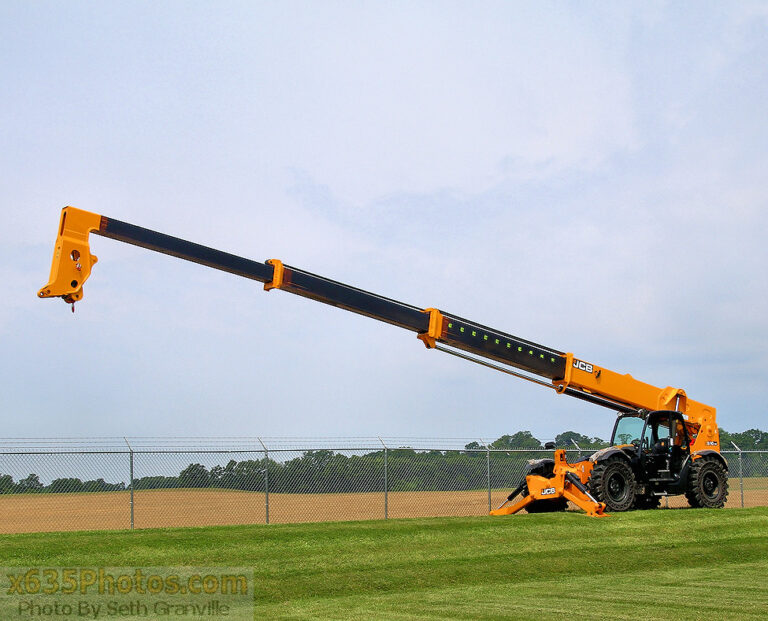

Telehandlers (Telescopic Handlers)

Telehandlers are versatile lifting machines designed for material handling in construction, agriculture, and industrial applications. They combine the lifting capability of a crane with the maneuverability of a forklift. Telehandlers feature a telescopic boom that extends forward and upward, allowing them to lift, move, and place loads at varying heights and distances.

Types of Telehandlers

  • Fixed Boom Telehandlers – Standard design with a rigid frame and a telescopic boom.
  • Rotating Telehandlers (Roto Telehandlers) – Feature a 360-degree rotating turret for greater flexibility.

Key Features

  • Lifting Capacities: Range from 2,500 lbs (1,134 kg) to over 12,000 lbs (5,443 kg).
  • Maximum Reach: Booms extend from 10 ft (3 m) to over 60 ft (18 m).
  • Attachments Compatibility:
    • Forks (standard pallet forks, extended reach forks)
    • Buckets (general-purpose, grapple buckets)
    • Lifting Jibs
    • Work Platforms
    • Bale Clamps (for agricultural use)

Common Applications

    • Construction: Moving pallets, lifting steel beams, handling formwork.
    • Agriculture: Lifting bales, loading feed, clearing debris.
    • Warehousing & Logistics: Stacking materials, reaching high storage areas.
    • Infrastructure & Utilities: Positioning workers for repairs, installing power lines.

Aerial Work Platforms (AWPs)

AWPs provide safe access to elevated work areas.

  • Scissor Lifts – Vertical lifting platforms with cross-braced supports.

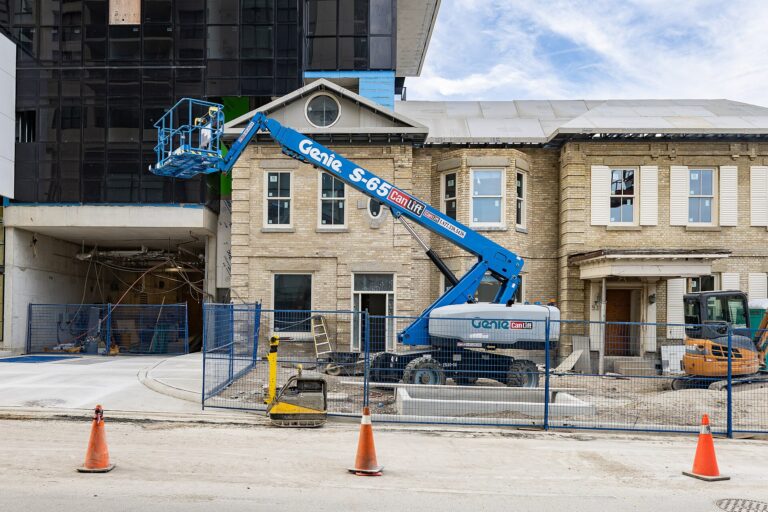

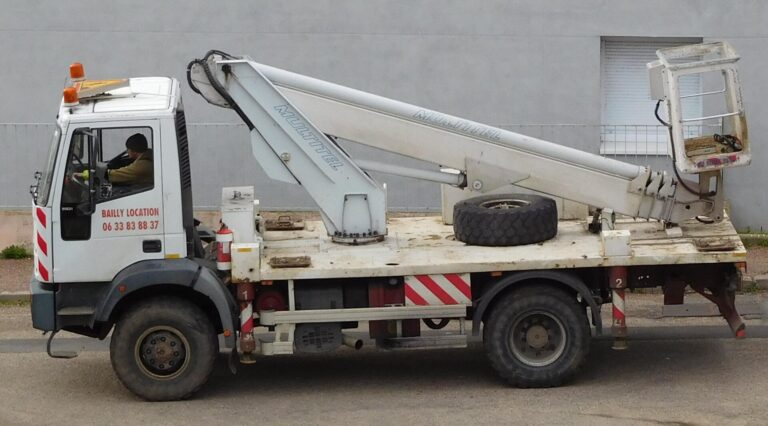

  • Boom Lifts – Available in articulating and telescopic configurations.
  • Cherry Pickers – Mobile aerial lifts for tree trimming and maintenance.
  • Vertical Mast Lifts – Compact lifts for indoor use.

Lifting Jacks & Hydraulic Systems

Jacks are compact lifting devices that rely on hydraulic or mechanical force.

  • Hydraulic Jacks – Use fluid pressure to lift heavy loads.
  • Screw Jacks – Operate with a threaded screw mechanism.
  • Toe Jacks – Designed for lifting loads with low ground clearance.
  • Pneumatic Jacks – Powered by air pressure for lifting operations.

Elevators & Lifts

Elevators and lifts transport people or goods vertically.

  • Construction Hoists – Used for moving personnel and materials on job sites.
  • Passenger Elevators – Found in buildings for human transportation.
  • Dumbwaiters – Small lifts for transporting goods between floors.
  • Goods Lifts – Heavy-duty freight elevators for industrial settings.

Specialized Lifting Equipment

These machines are designed for specific lifting tasks.

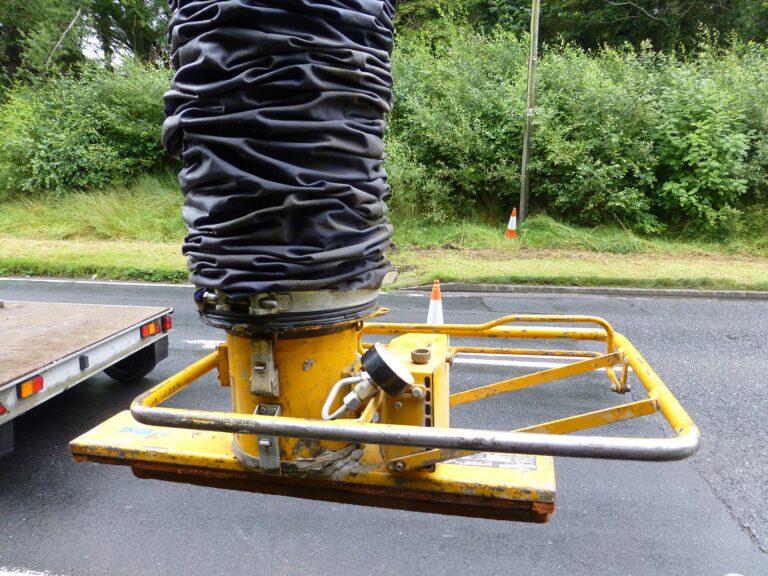

  • Vacuum Lifters – Use suction technology for handling glass and panels.
  • Magnetic Lifters – Ideal for lifting ferrous materials.
  • Glass & Stone Lifters – Designed for safely moving delicate materials.
  • Tire & Drum Lifters – Used for handling large, cylindrical objects.
