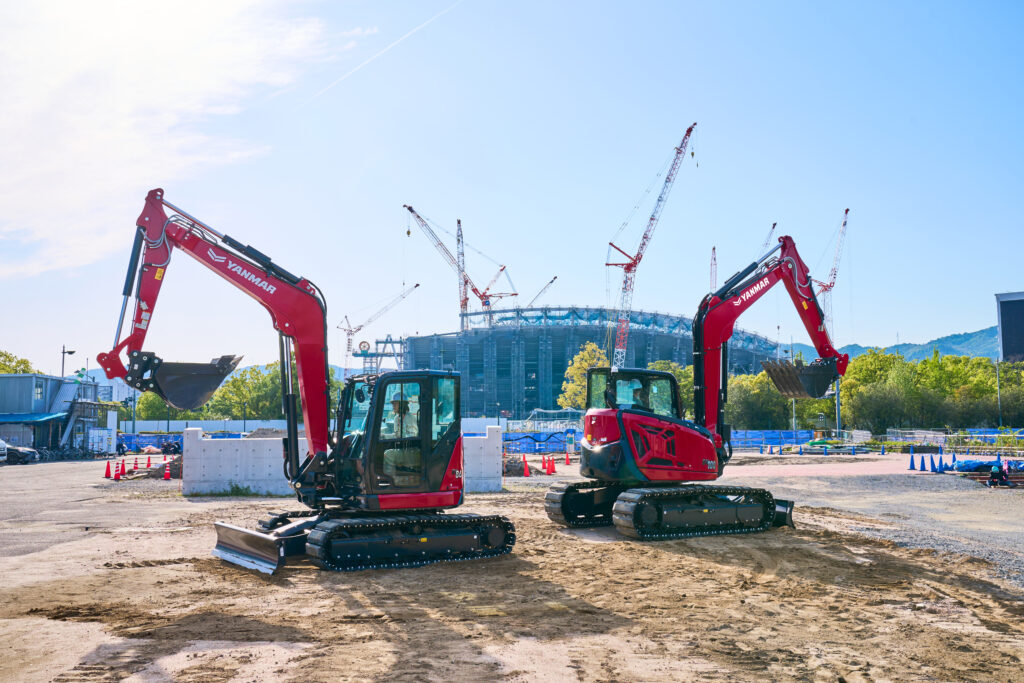

Yanmar CE has launched two new midi excavators: the SV86-7 and the SV100-7, both in the 8-10 tonne segment. The units are designed to meet the dynamic needs of our modern, congested landscape, combining compact dimensions with efficiency, increased performance and operator-centric design enhancements.
In an era where urban spaces are increasingly constrained, Yanmar CE has developed the new models to excel within tight confines – without compromising on power or functionality. Despite being in the larger weight class, the SV86-7 (8,675kg Operating Weight (OW)) and SV100-7 (9.705kg OW) maintain a remarkably compact footprint. They feature a tight front swing radius (2,120mm for the SV86-7 and 2.450 mm for the SV100-7) and minimal rear turning radiuses (1,265mm for the SV86-7 and 1.365 mm for the SV100-7). Coupled with minimal rear overhang (120mm and 205mm, respectively), this design ethos ensures they are perfectly suited for work in limited spaces.
The SV86-7 offers the highest lifting capacity in its class. Attributed to its optimal weight distribution and minimal rear overhang, it boasts lifting capacities of 1.290kg (side) and 2.280kg (front). With the help of its excellent weight distribution, the unit also exceeds the stability of others in its weight class.
“I like the stability of the SV86-7. You can really feel the tipping point which makes it easy to control and feel safe.”
said Marco Schleich from Baggerbetrieb Schleich, Germany, who had the opportunity to test the unit ahead of its official launch.

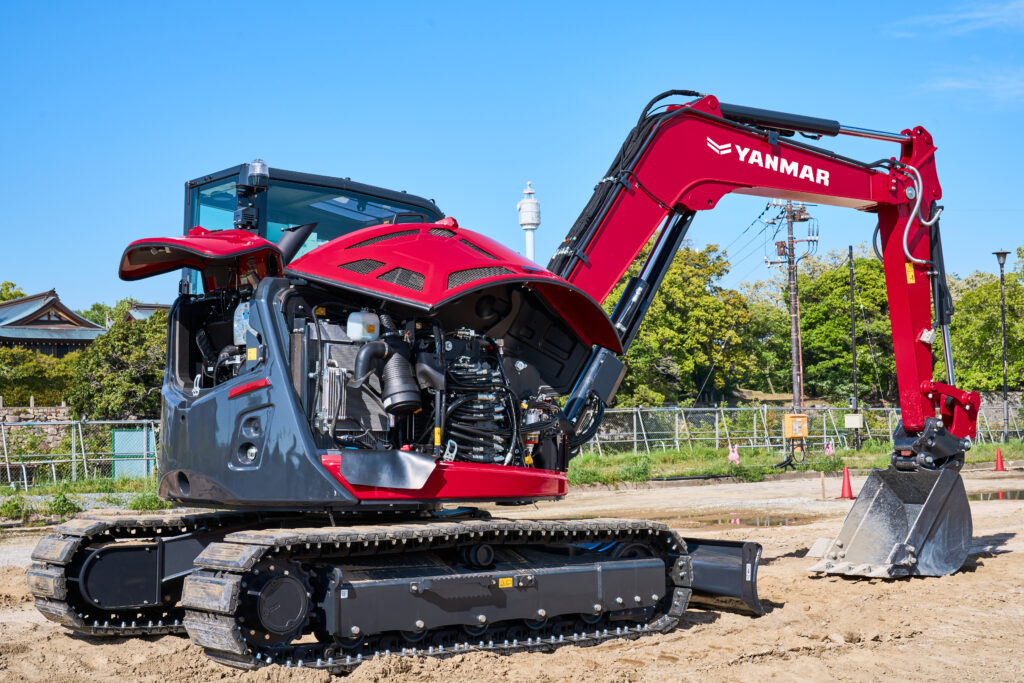

The SV86-7 now features a robust yet fuel-efficient 4TNV98CT turbo engine, capable of delivering 50.8kW at 1,800rpm. This enhancement not only elevates earthwork and hill-climbing performance but also significantly cuts down on fuel consumption. The SV100-7 midi excavator is also powered by the 4TNV98CT engine, offering remarkable lifting capabilities of 1.420kg (side) and 2.390kg (front). A welcome addition to Yanmar’s ten-tonne class is the ViPPS2i system—a two-piston hydraulic pump designed to maximize performance and efficiency. The ViPPS2i system ensures both machines excel in a variety of construction tasks by boosting hydraulic efficiency and reducing fuel use.
Operator comfort
Responding to direct customer feedback, the SV86-7 and the SV100-7 introduce a completely redesigned exterior, merging modern aesthetics with dynamic functionality. In a
move to enhance operational visibility, the glass area has been significantly expanded all-round the cabins; complemented by standard right and rear-view cameras. Recognizing that operators in larger machines spend prolonged hours at the helm, the design of these midi excavators prioritizes comfort; featuring a rectangular and more spacious cabin; and an automatic AC system. Additionally, a new 7-inch LCD color display monitor in both models enhances operational efficiency and control, showcasing Yanmar CE’s dedication to user-friendly interfaces.
“I enjoyed the spacious feeling in the cab. It is modern, very quiet and comfortable.”
said Scott Neillands from SWN Plant, a UK-based operator and Yanmar CE client.
Low noise level
Achieving low noise levels was a primary goal during the development of the SV86-7 and SV100-7, especially considering the strict noise regulations in Yanmar’s homeland, Japan. The company’s commitment to adhering to these stringent standards has resulted in machines that not only meet but exceed expectations in global markets. The SV86 operates at just over 93 decibels, while the SV100 maintains a low noise level of just below 97 decibels. Operators who have had the chance to trial the new models report a notably pleasant and smooth noise quality, describing it as a “humming effect” that is easy on the ears and less intrusive on the worksite. This lowered noise pollution enhances the working environment for operators, while minimizing acoustic impact on surrounding communities.
Versatile Applications
Now available globally through Yanmar CE’s extensive dealer network, the SV86-7 and SV100-7 are suited for a wide range of applications where space comes at a premium, from landscaping and earthworks to roadworks. Their compact dimensions and powerful performance make them ideal for projects in confined spaces, such as road maintenance or home building.
Source: Yanmar CE
