The traditional German miners‘ greeting “Glückauf” (“Good luck”) is the motto for the 16 t telescopic cranes from Sennebogen, because, in Europe’s largest rock-salt mine in Heilbronn, the mobile crane is going underground to support the miners in their work in the underground chambers. Südwestdeutsche Salzwerke AG has already purchased 12 Sennebogen cranes since 2000.
Mining is one of the most traditional industries in Germany and the world. Also at the Heilbronn rock-salt mine, salt has been extracted from salt layers up to 50 meters thick for more than 125 years. In addition to the extraction of raw materials, however, waste disposal is also an important business area of the mine. Waste materials are treated safely and maintenance-free and then recycled or disposed of. For a long time now, the miners have been supported by powerful machines and the latest technologies – also from Sennebogen. Recently, they welcomed a new Sennebogen 613 E telescopic mobile crane in their fleet, which, thanks to its compactness and flexibility, is perfect for demanding underground operations.
Flexibility despite tight space conditions in mining
Underground navigation in narrow shafts

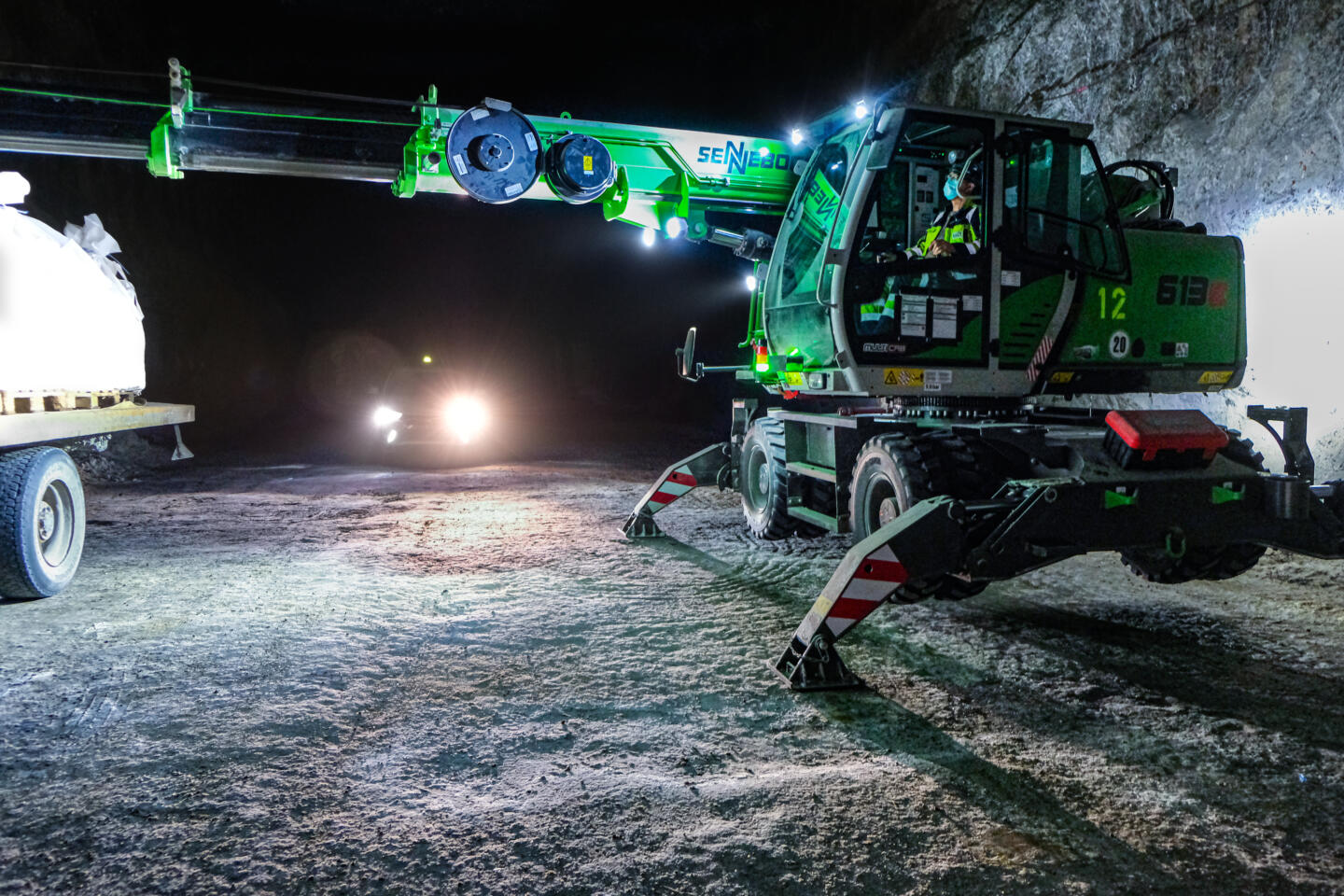

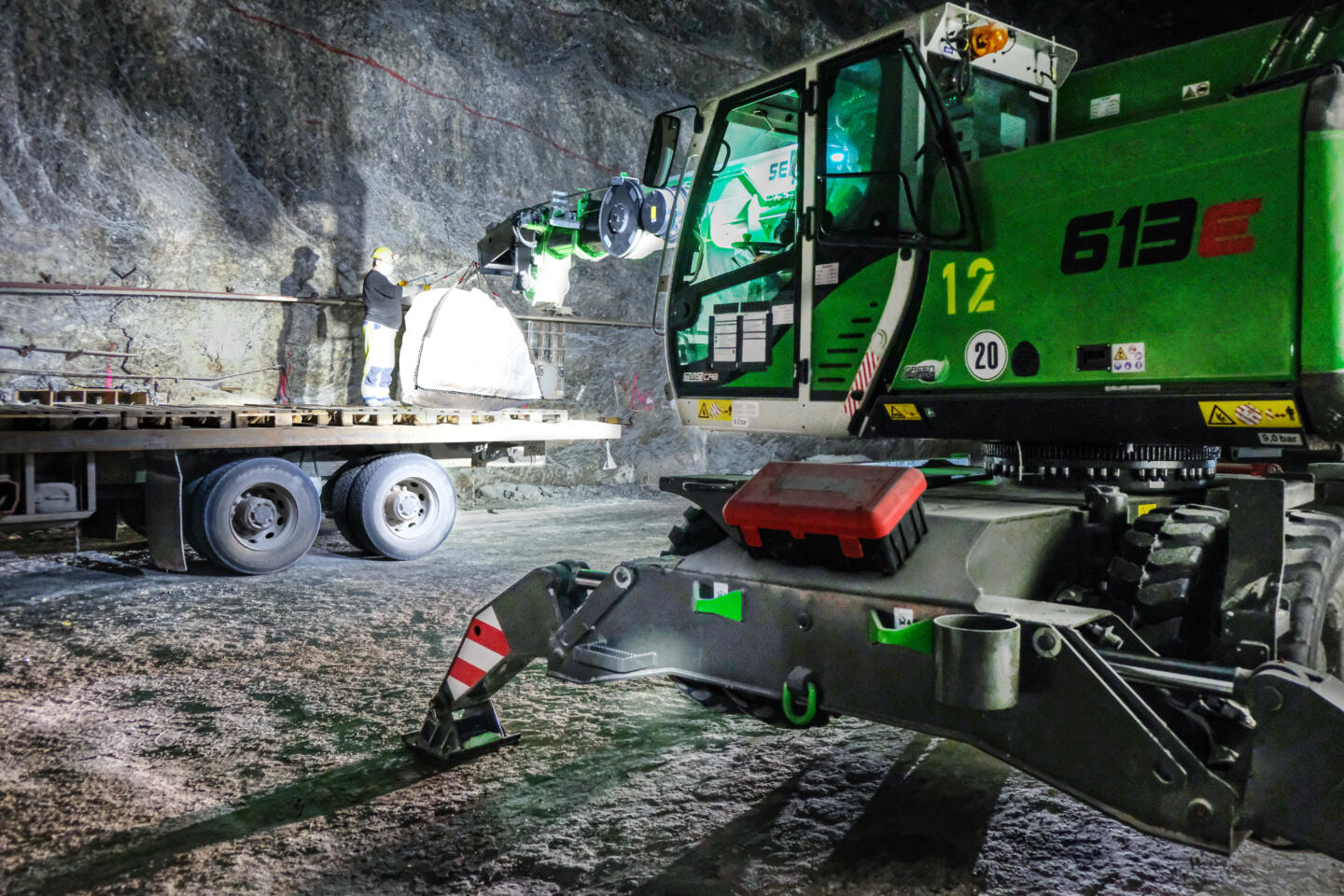

The crane’s mobile undercarriage offers maximum mobility and a small turning radius, which means that despite the often winding corridors, the miners can approach the respective work site directly and conveniently. Adjusted reversing signals via broadband audio increase safety when navigating underground. Specially curved outrigger feet have been used in the integrated 4-point outrigger of the mobile crane to additionally reduce the outrigger area for the narrow shafts, while still ensuring excellent stability when lifting loads thanks to the 400 x 400 mm large outrigger pads.
Safety is the top priority when handling waste underground
In the mine, the 16 t telescopic mobile crane is now primarily used as a stacking vehicle for moving big bags of waste materials weighing up to 2 tons, so that they can be handled and disposed of in a long-term safe, and environmentally friendly manner. When picking up and positioning the load, the continuously telescoping full-power boom of the 613 E is not only extended and retracted frequently, but also generally operates with a very flat boom angle due to the low ceiling height. An electronic load moment indicator (LMI) of the latest generation ensures top-level safety during these complex lifting operations. At any time, the LMI compares the currently attached load, boom extension, and angle with the load chart and initiates safety-related functions if the values are exceeded. This supports the crane operator in his work and prevents possible risks. Likewise, a permanently installed fire extinguishing system is mounted on the machine from the outset for safety reasons.
Miners and mine operators are fully satisfied with the Sennebogen cranes: “Südwestdeutsche Salzwerke AG has already purchased 12 Sennebogen since 2000. Certainly a very good testimony to our satisfaction,” summarizes Daniela Pflug, Group Press Officer.
Source: Sennebogen
